DS3231 RTC Module with Arduino – A Complete Guide

Introduction

In this guide, we will explore how to interface the DS3231 RTC Module with Arduino, set and read the time, use alarms and temperature readings, and display time on an OLED. The DS3231 is a real-time clock (RTC) module that keeps track of time even when the Arduino is powered off. It has a built-in temperature-compensated crystal oscillator, ensuring accurate timekeeping.

Features of DS3231 RTC Module

• High-accuracy real-time clock
• Battery backup support for continuous timekeeping
• Communicates with Arduino via I2C
• Built-in temperature sensor for compensation
• Two programmable alarms

How RTC Modules Work Internally

The DS3231 maintains time using an internal crystal oscillator. Unlike regular RTC modules, it includes a temperature compensation mechanism that adjusts for fluctuations in temperature, ensuring high accuracy. The internal memory stores time and date data even when the main power is lost, thanks to the backup battery.

For more technical details and datasheet visit here.

Components Required

• Arduino UNO
• DS3231 RTC Module
• CR2032 Battery (for backup)
• Jumper Wires
• 0.96-inch OLED Display (for advanced example)

Comparing DS3231 vs DS1307 RTC Modules

DS3231 is the better choice when accuracy is important, while DS1307 is more cost-effective for less critical applications.

DS3231 RTC Module Pinout

Wiring DS3231 with Arduino

Connection Table

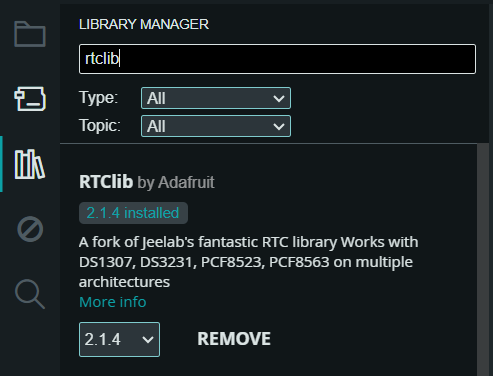

Installing the Required Library

To communicate with the DS3231 module, install the RTClib library.

Steps:

1. Open Arduino IDE.
2. Go to Sketch → Include Library → Manage Libraries.
3. Search for RTClib and install it.

Code For RTC Module with Arduino

Upload the following code to set and read time from the RTC module:

// DS3231 RTC Module with Arduino by ArduinoYard
#include <Wire.h>
#include <RTClib.h>

RTC_DS3231 rtc;

void setup() {
    Serial.begin(9600);
    if (!rtc.begin()) {
        Serial.println("RTC module not found!");
        while (true);
    }
    if (rtc.lostPower()) {
        rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
    }
}

void loop() {
    DateTime now = rtc.now();
    Serial.print(now.year(), DEC);
    Serial.print('/');
    Serial.print(now.month(), DEC);
    Serial.print('/');
    Serial.print(now.day(), DEC);
    Serial.print(" ");
    Serial.print(now.hour(), DEC);
    Serial.print(":");
    Serial.print(now.minute(), DEC);
    Serial.print(":");
    Serial.print(now.second(), DEC);
    Serial.println();
    delay(1000);
}

Code Explanation:

• Initializes the RTC module.
• Adjusts the date and time if the module lost power.
• Reads and prints the current time every second.

Demonstration

Hardware:

Serial Monitor Output:

Here is the output of the RTC displaying date and time on the Serial Monitor:

Using Alarms with DS3231

The DS3231 supports two alarms that can trigger an event at a specific time. Below is an example of setting an alarm:

rtc.setAlarm1(DateTime(0, 0, 0, 12, 30, 0), DS3231_A1_Hour);

This sets an alarm at 12:30 PM.

Reading Temperature from DS3231

The module has a built-in temperature sensor. To read the temperature:

float temperature = rtc.getTemperature();
Serial.println(temperature);

Displaying Time on an OLED Display

Wiring:

Code:

The following code reads the RTC time and displays it on a 0.96-inch OLED screen.

// DS3231 RTC Module with Arduino by ArduinoYard
#include <Wire.h>
#include <RTClib.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

RTC_DS3231 rtc;
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
    Serial.begin(9600);
    if (!rtc.begin()) {
        Serial.println("RTC module not found!");
        while (true);
    }
    if (rtc.lostPower()) {
        rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
    }
    display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
    display.clearDisplay();
}

void loop() {
    DateTime now = rtc.now();
    display.clearDisplay();
    display.setTextSize(1);
    display.setTextColor(WHITE);
    display.setCursor(10, 10);
    display.print("Time: ");
    display.print(now.hour()); display.print(":");
    display.print(now.minute()); display.print(":");
    display.print(now.second());
    display.display();
    delay(1000);
}

Low-Power Mode & Sleep Mode with RTC

In battery-powered projects, putting the Arduino into sleep mode and using the RTC to wake it up saves power. The following example wakes up Arduino when an alarm is triggered:

#include <avr/sleep.h>
#include <Wire.h>
#include <RTClib.h>
RTC_DS3231 rtc;

void wakeUp() {}

void setup() {
    pinMode(2, INPUT_PULLUP);
    attachInterrupt(0, wakeUp, LOW);
    rtc.setAlarm1(DateTime(0, 0, 0, 7, 0, 0), DS3231_A1_Hour);
}

void loop() {
    set_sleep_mode(SLEEP_MODE_PWR_DOWN);
    sleep_enable();
    sleep_mode();
    sleep_disable();
}

Troubleshooting Tips

1. RTC module not detected?
   • Check wiring, especially SDA and SCL connections.
   • Ensure the RTClib library is installed.
2. Incorrect time after power loss?
   • Insert a CR2032 battery to maintain timekeeping.
   • Manually adjust the time using rtc.adjust().
3. OLED display not working?
   • Ensure the I2C address of the OLED is correct (0x3C or 0x3D).

Conclusion

This guide covered how to interface the DS3231 RTC Module with Arduino, display time on an OLED, use alarms, and implement sleep mode. The DS3231 is a great choice for accurate timekeeping in Arduino projects.

Do you have any questions or want additional features? Let us know in the comments! 🚀
